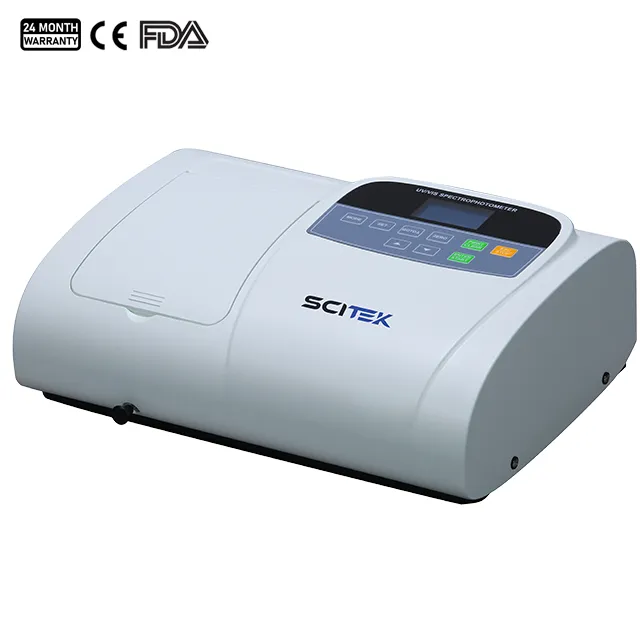

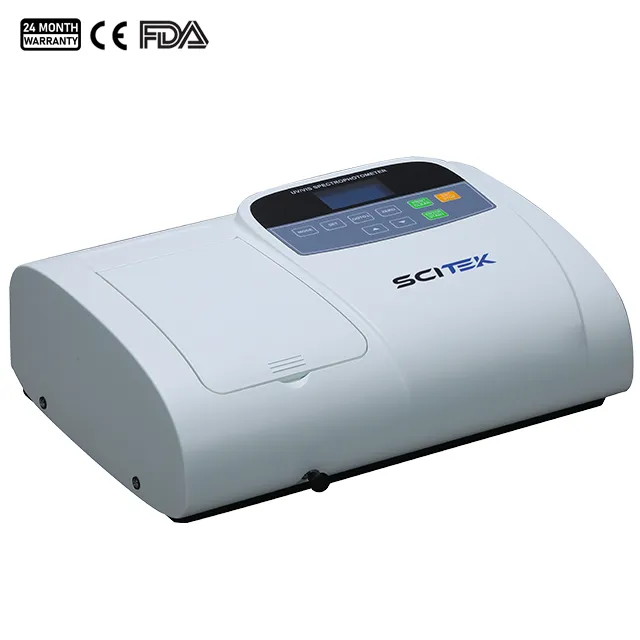

Visible Spectrophotometer, Bandwidth 2/4nm

Model : SP-V5100
Wavelength Range : 325-1000nm
Wavelength Accuracy : ±2nm
Wavelength Repeatability : 0.5nm
Output : USB Port & Parallel Port(Printer)
Size(W×D×H)(mm) : 420x280x180
Visible spectrophotometer with automatic wavelength setting, designed for ease of use.

Single Beam Visible Spectrophotometer Specifications:

Model	SP-V5100
Optical System	Single beam, Grating 1200 lines/mm
Wavelength Range	325-1000nm
Bandwidth	4nm(optional 2nm)
Wavelength Accuracy	±2nm
Wavelength Repeatability	0.5nm
Wavelength Setting	Auto
Photometric Accuracy	±0.5%T
Photometric Repeatability	≤0.2%T
Photometric Range	-0.3-3A, 0-200%T, 0-9999C
Photometric Mode	T, A, C, F
Stray Light	≤0.1%T
Stability	± 0.002A/h @ 500nm
Display	128×64 LCD
Detector	Silicon Photodiode
Light Source	Tungsten Lamp
Output	USB Port & Parallel Port (Printer)
Power Requirements	AC 85~250V
Size(W×D×H)(mm)	420x280x180
Shipping Size(W×D×H)(mm)	600x460x330
N.W./G.W. (kg)	10/14

A 2.5 inch LCD screen is included to display standard curves and groups of results.
Various standard curves can be established based on the customer’s solutions to determine the concentration of unknown solutions.
The device has a USB port for data output, which can be connected to a PC to display spectrum scanning, kinetics, and multi-wavelength testing results on the screen.
The device can display wavelength, absorption, and transmittance with 5 results per screen and store up to 200 results in its memory.
Users can set the wavelength automatically using arrow keys to avoid operation errors.
