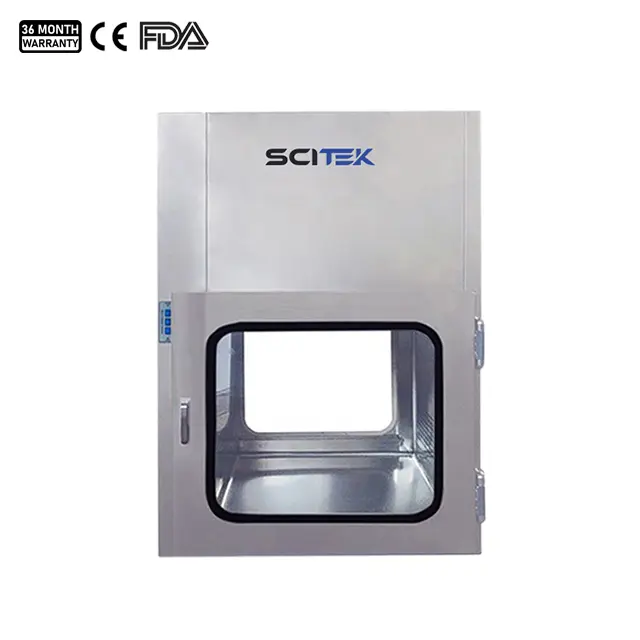

Pass Box

Model : ASPB-1; ASPB-2; ASPB-3; PB-1; PB-2; PB-3
Material : 304 Stainless steel
Interlock : Electronical
Clean Air Speed : 0.36~0.54m/s
HEPA Filter : Efficiency2 99.999% at 0.3μm
Pass boxes are the perfect tool for transporting items in and out of cleanrooms. Now the affordable pass boxe for sale at a low price.

Add to wishlist

Categories: Products, Clean Room Project

Description

Pass box is used to transfer goods between rooms of different clean levels of clean room. It can reduce times of opening door, prevent the air convection between different rooms and minimize the pollution extent.

Pass Box Specifications:

Type	Air Shower Pass Box			Pass Box
Model	ASPB-1	ASPB-2	ASPB-3	PB-1	PB-2	PB-3
External Size (WxDxH)(mm)	660x570x1000	760x670x1100	860x770x1200	660x570x580	760x670x680	860x770x780
Internal Size (WxDxH)(mm)	500x500x500	600x600x600	700x700x700	500x500x500	600x600x600	700x700x700
Material	304 Stainless steel
Interlock	Electronical
UV Lamp	30Wx1
HEPA Filter	Efficiency2 99.999% at 0.3μm			/	/	/
Clean Air Speed	0.36~0.54m/s			/	/	/
Gross Weight (kg)	75	95	105	50	70	80
Package Size (WxDxH) (mm)	700x700x1250	800x800x1350	900x900x1450	700x700x750	800x800x850	900x900x950
